Drone mapping — the process of using unmanned aerial vehicles (UAVs) to capture aerial imagery and convert it into georeferenced 2D maps or 3D models — has become a standard tool across public safety, construction, surveying, insurance, and infrastructure management. As of 2026, the FAA tracks over 860,000 registered drones in the United States, and mapping represents one of the fastest-growing commercial applications. This guide covers how drone mapping works, what it costs, and which approach fits different operational needs.
Contents
- What is drone mapping and how does it work?
- What are the main capture methods for UAV mapping?
- What does drone mapping cost?
- What industries use drone mapping services?
- How does SkyeBrowse simplify drone mapping?
- What are the accuracy limitations of drone mapping?
- Last Updated
What is drone mapping and how does it work?
Drone mapping uses a UAV to capture overlapping aerial images or continuous video of a site, then processes that footage into calibrated outputs — orthomosaic maps (geometrically corrected aerial mosaics), 3D mesh models, or point clouds. The software calculates camera positions from GPS telemetry and visual feature matching, reconstructing the scene so teams can measure distances, areas, and volumes directly from the output. According to the USGS National Geospatial Program, UAS-derived data is now accepted as a legitimate source for high-resolution elevation and surface models when capture protocols meet positional accuracy standards.
The workflow follows three stages. First, the operator flies the drone over the target area — either on a pre-planned grid path or a freehand orbit, depending on the software. Second, the captured footage uploads to a processing platform (cloud or desktop). Third, the software reconstructs the scene and delivers downloadable outputs in standard formats like GeoTIFF for GIS, LAZ for point clouds, or GLB for 3D mesh viewers.
The USGS National Geospatial Program recognizes UAS-derived orthoimagery and elevation models as valid geospatial data sources when they meet documented accuracy thresholds — making drone mapping outputs usable for official surveys, environmental assessments, and infrastructure records.
What are the main capture methods for UAV mapping?
The three primary capture methods are photogrammetry, videogrammetry, and LiDAR. Photogrammetry — the science of deriving measurements from photographs — requires hundreds of overlapping still images captured in grid patterns. Videogrammetry achieves similar results from continuous video, reducing capture complexity. LiDAR uses pulsed laser light to directly measure distances and produces the highest absolute accuracy but requires expensive specialized sensors.
Photogrammetry remains the traditional standard. The drone flies a pre-planned grid with 75-85% frontal overlap and 60-70% sidelap, capturing thousands of still frames. Processing times range from 30 minutes to several hours depending on area size and desired resolution. For detailed comparisons, see videogrammetry vs photogrammetry.

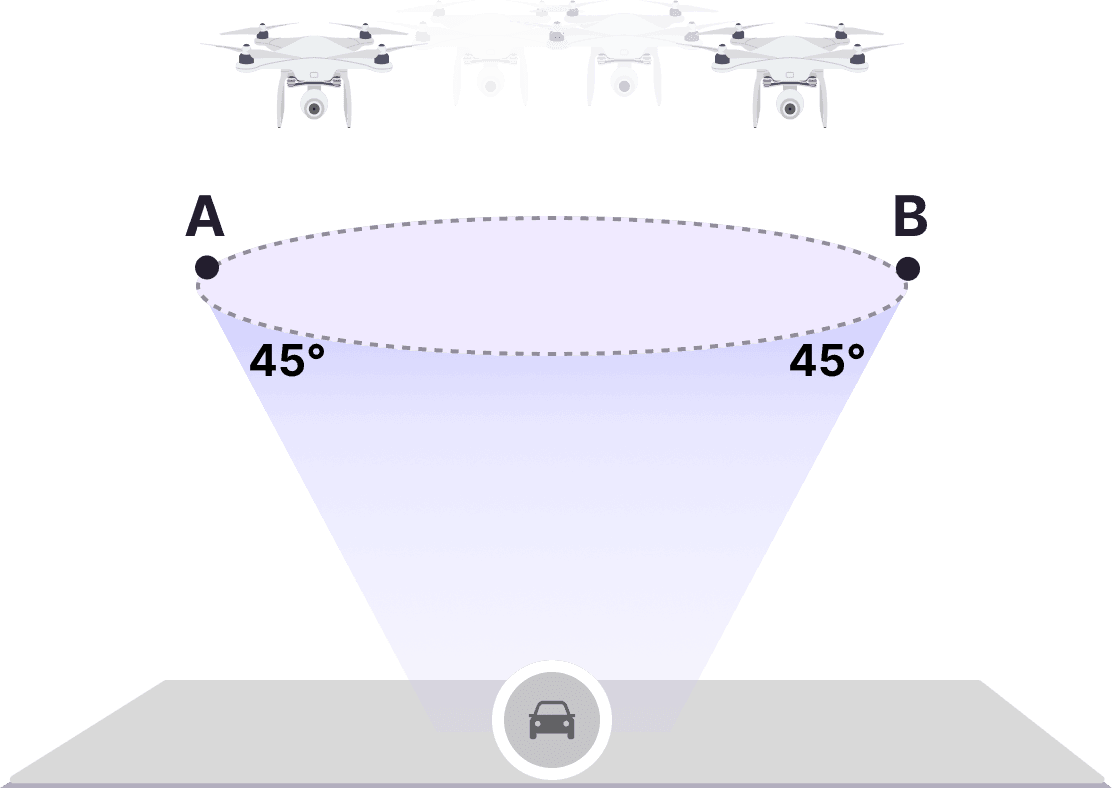

Videogrammetry — a newer approach that derives 3D geometry from continuous video rather than discrete photos — simplifies the capture process significantly. Operators fly an orbit or walkaround rather than executing rigid grid patterns, and the software extracts frames automatically. SkyeBrowse's patented videogrammetry processing typically completes in roughly one minute per minute of source video.
LiDAR sensors mounted on drones produce survey-grade accuracy and can penetrate vegetation canopy, but drone-grade LiDAR units typically cost $10,000-$50,000. For most commercial and public safety workflows, photogrammetry or videogrammetry delivers sufficient accuracy at a fraction of the cost. See LiDAR vs photogrammetry for a detailed comparison.
What does drone mapping cost?
Drone mapping costs vary by method, area size, and accuracy requirements. Hardware ranges from $500-$2,000 for consumer camera drones to $15,000+ for enterprise platforms with RTK GPS. Software subscriptions range from free tiers with processing limits to $200-$500/month for professional plans. Per-model credit pricing — like SkyeBrowse's $99 Premium or $199 Premium Advanced credits — lets teams pay only for what they process without monthly commitments.
For drone mapping services provided by third-party operators, typical rates run $150-$500 per acre depending on deliverable complexity and turnaround requirements. Organizations that map frequently find it more cost-effective to bring operations in-house with their own hardware and software subscriptions.
The total cost equation includes the drone platform, mapping software, operator certification (FAA Part 107 Remote Pilot Certificate is required for commercial operations), and any ground control point equipment needed for survey-grade accuracy. For projects where ground control points are required, add $2,000-$5,000 for RTK GPS equipment.
What industries use drone mapping services?
Public safety, construction, surveying, insurance, and infrastructure management are the primary verticals. Public safety agencies use drone mapping for accident reconstruction, crime scene documentation, and tactical preplanning. Construction teams use it for progress monitoring and volume calculations. Surveyors use it for topographic mapping at a fraction of traditional survey costs. Insurance adjusters use it for remote damage assessment after storms and disasters.

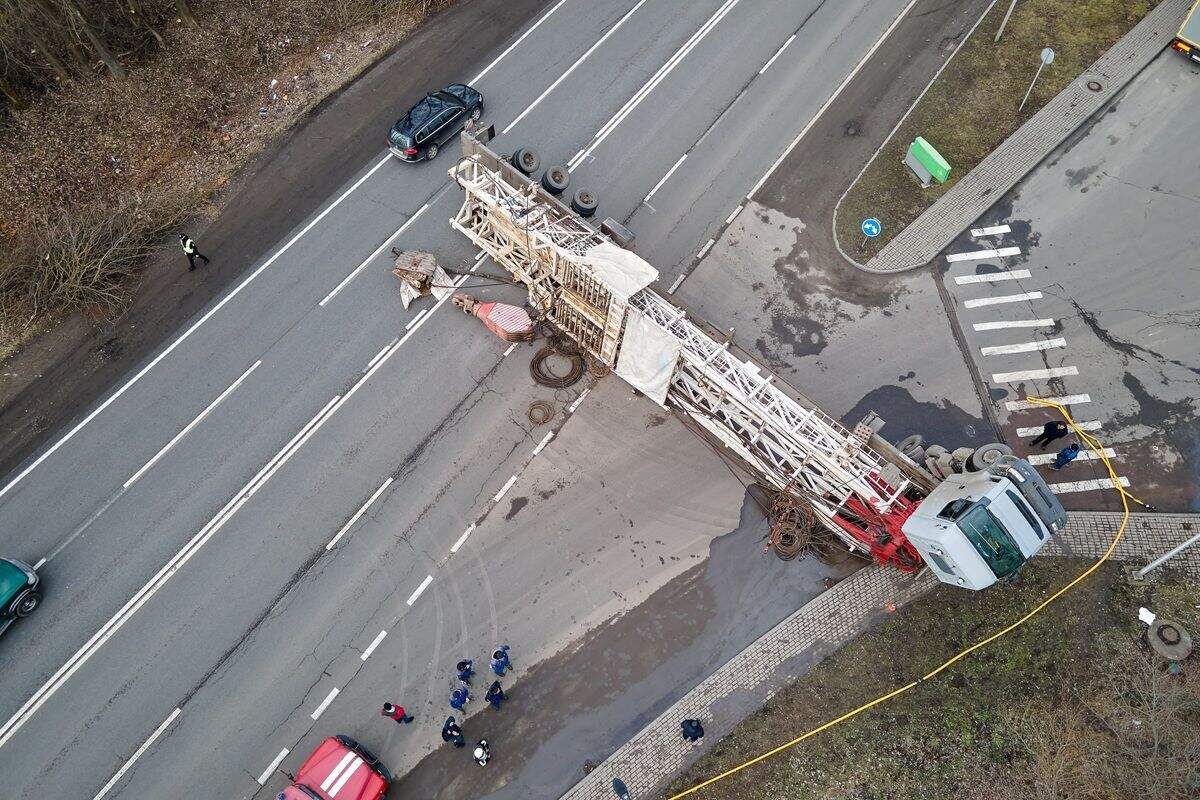

Public safety: Traffic accident reconstruction teams produce measurable 3D models of crash scenes in minutes, reopening roadways hours earlier than traditional total-station surveys. NHTSA identifies prolonged lane closures as a significant factor in secondary crash risk, making speed-to-model a safety imperative. Fire departments use drone mapping for pre-incident planning and post-fire investigation. See the full accident reconstruction and fire department operations guides.
Construction: Weekly orthomosaic maps track site progress, cut/fill volume calculations inform earthwork billing, and as-built models document completed conditions. Drone mapping replaces hours of manual measurement with automated aerial surveys. See 3D mapping for construction.
Surveying: Drone surveying produces topographic data at $200-$500 per acre compared to $1,000-$3,000+ for traditional ground surveys, with turnaround in days instead of weeks.
Insurance: Adjusters document property damage remotely using drone or smartphone video, accelerating claims processing from weeks to same-day resolution.
How does SkyeBrowse simplify drone mapping?
SkyeBrowse is a videogrammetry platform that processes video directly into 3D models and 2D maps through its cloud platform at map.skyebrowse.com. Instead of requiring grid flights and thousands of still images, SkyeBrowse accepts continuous video from drones, phones, body cameras, and 360 cameras via its Universal Upload feature. Cloud processing on AWS GovCloud infrastructure typically delivers finished models within minutes.
SkyeBrowse serves more than 1,200 agencies worldwide with three accuracy tiers: Lite (~2-6 inch relative accuracy), Premium (up to 8K at ~0.25 inch accuracy with CJIS-focused chain-of-custody controls), and Premium Advanced (up to 16K at ~0.1 inch accuracy with AI-assisted moving object removal).
The platform accepts .MP4 and .MOV files and supports telemetry files (.SRT for DJI, .ASS for Autel) to improve georeferencing. Outputs include orthomosaic maps, 3D mesh models, point clouds (LAZ), and exports in GLB and GeoTIFF formats. The SkyeBrowse Flight App provides automated capture workflows for supported drones.
For drone mapping software comparisons and feature evaluations, see the complete software guide.
What are the accuracy limitations of drone mapping?
All drone mapping methods produce relative accuracy by default — measurements within the model are internally consistent, but absolute real-world coordinates may drift without ground control points or RTK GPS. Uniform textureless surfaces (parking lots, snowfields), moving objects, and heavily vegetated areas all reduce model quality. Indoor mapping adds complexity because GPS is unavailable and lighting must be controlled.
For workflows requiring absolute georeferencing — integration with survey-grade GIS datasets, for example — ground control points or RTK-equipped drones are necessary regardless of the software platform used.
Per FAA Part 107, commercial drone flights require a Remote Pilot Certificate, and operations near airports, over people, or at night require waivers. Drone mapping software does not eliminate regulatory compliance requirements.
